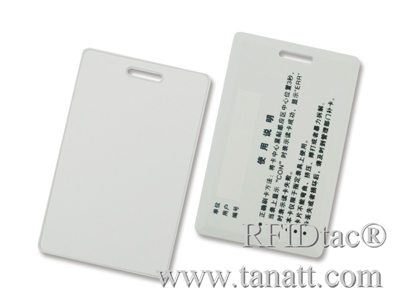

Clamshell Card
1. waterproof, dustproof, anti-corrosion, anti-vibration, easy to operate portable, fast, reliable, long life
2. identify stability penetration, has Korfball unique identification code
3. mainly for enterprise / campus card, bus card, highway fees, parking, residential management
|
● Basic parameters |
|
| Types | Passive RFID tag |
| Working frequency | 125KHz, 13.56MHz, 860-960MHz |
| Protocol | ISO14443A, ISO15693, ISO / IEC 18000-6C EPC Class1 Gen2 |
|
● Physical parameters |
|
| Size | 86 * 54 * 1.8mm |
| Packaging Materials | PVC + ABS case |
| Antenna | Copper coil, Aluminum etching antenna |
| Craft | 4C offset print,Silk screen print, Inkjet print,Encoding |
|
● Performance parameters |
|
| Chip | EM4200 / 4305, HT4168, T5577, S50 / S70, Ultralight EV1 / Ultralight C, FM1108, Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage |
Related to the chip |
| Operating mode | Can read and write |
| Data retention | > 10 years |
| Write Endurance | 100,000 times |
| Reading distance | 0-5cm, 0-10m (the reading range is related to the working condition and reader) |
|
● Environmental parameters |
|
| Operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 75 ℃) |
|
● Typical applications |
|
| Applications | Identification,Attendance System,Access control system,Membership management,Toll collect system |
|
● Package |
|
| Packaging Information | 100pcs/ box |
